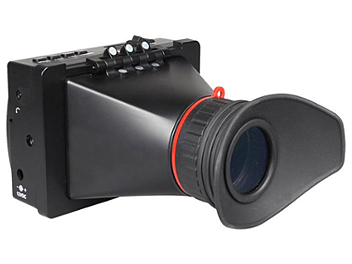

Globalmediapro FVS-350 3.5-inch HD-SDI Viewfinder
In Stock
$260.00
SDI Input
PTT Adjustment
Custom Color Temperature
AC/DC, Overscan, 16:9/ 4:3 Switch
Sun Shade, Center Marker
Check Field (Red, Green, Blue, Mono), External Battery
Peaking Filter (Focus Assist)
Screen Marker (80%, 85%, 90%, 93%, 96%)
External Monitor for DLSR Video Shoots
Enhances Stability for Shooting Video
PTT Adjustment
Custom Color Temperature
AC/DC, Overscan, 16:9/ 4:3 Switch
Sun Shade, Center Marker
Check Field (Red, Green, Blue, Mono), External Battery
Peaking Filter (Focus Assist)
Screen Marker (80%, 85%, 90%, 93%, 96%)
External Monitor for DLSR Video Shoots
Enhances Stability for Shooting Video
Specifications
Resolution : 800 x 480 (up to 1920 x 1440)
Brightness : 315cd/m2
Contrast - 800:1
Dot Pitch : 31.5 x 94.5 um
Response Time : 10ms
Aspect Ratio : 15:9
Backlight : LED
Viewing Angle : 80o / 80o (L/R) 80o / 80o (U/D)
Inputs : SDI, HDMI
SDI Format Support
ITU-R BT.656 576i
SMPTE-125M 480i
SMPTE-274M 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 24fps / 23.98 / 23.98fps)
SMPTE-296M 720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98)
SMPTE-424M 1080i (60 / 59.94 / 50), 1080p (60 / 59.94 / 50)
HDMI Format Support : 1080 / 50i / 50p / 60i / 60p; 720 / 50p / 60p; 480i / 480p; 576i / 576p
Outputs : SDI, 3.5mm audio output
Power Consumption : <=3W
Input voltage : DC 6V - 18V
Install Way : Mounting Process 1/4"-20 Thread Socket
Working Temperature : -20 to 50oC (-4 to 122oF)
Storage Temperature : ‐30 to 65oC (-22 to 149oF)
Dimensions : 124.3L x 87.5H x 178.5D mm
Weight : 344g
Brightness : 315cd/m2
Contrast - 800:1
Dot Pitch : 31.5 x 94.5 um
Response Time : 10ms
Aspect Ratio : 15:9
Backlight : LED
Viewing Angle : 80o / 80o (L/R) 80o / 80o (U/D)
Inputs : SDI, HDMI
SDI Format Support
ITU-R BT.656 576i
SMPTE-125M 480i
SMPTE-274M 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 24fps / 23.98 / 23.98fps)
SMPTE-296M 720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98)
SMPTE-424M 1080i (60 / 59.94 / 50), 1080p (60 / 59.94 / 50)
HDMI Format Support : 1080 / 50i / 50p / 60i / 60p; 720 / 50p / 60p; 480i / 480p; 576i / 576p
Outputs : SDI, 3.5mm audio output
Power Consumption : <=3W
Input voltage : DC 6V - 18V
Install Way : Mounting Process 1/4"-20 Thread Socket
Working Temperature : -20 to 50oC (-4 to 122oF)
Storage Temperature : ‐30 to 65oC (-22 to 149oF)
Dimensions : 124.3L x 87.5H x 178.5D mm
Weight : 344g
In the Box
Magnifier
NP-F Battery Plate
Mini HDMI Cable
NP-F Battery Plate
Mini HDMI Cable
