Designed for convenience and ease of operation, the TSM-61 is an excellent value in waveform monitors. Market proven traditional features are combined with ergonomically designed controls. Proven, reliable circuit design permits a variety of measurement parameters.

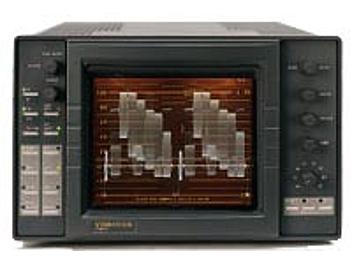

shown with optional SSC-1 case

Features
INPUTS: Two composite loop through
DISPLAYS: 1H, 2H, 2V, 1H mag, 2H mag, 2V mag
FREQUENCY RESPONSE: Flat to 10 MHz
GRATICULE: Internally etched to eliminate parallax errors
HIGH BRIGHTNESS CRT: With non-glare contrast filter for enhanced visibility
FILTERS: Flat, IRE, Chroma, Differential Gain
LINE SELECT:
PAL: Select line 13 through 22 of odd fields, and line 325 through 334 of even fields
YRGB/RGB: 9 pin access connector for monitoring color processing amplifier waveforms
DC RESTORATION: Maintains display stability with varying APL
STANDARDS AVAILABLE: PAL, PAL-M

Standard Accessories
Non-glare contrast filter
Operator's Manual
Power cord
