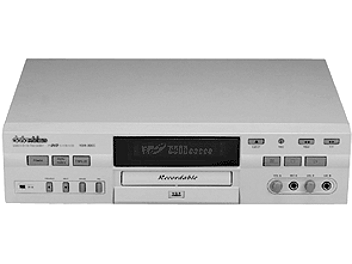

Stand-alone video recorder which can record top-quality MPEG2 video on common, low-cost CD-R and CD-RW discs. Datavideo discs play back on many DVD players, VCD players, and the Datavideo CP-100 compact video disc player.

Specification

Recording Formats
CD-DVD MPEG-2 5.0Mb/sec. Bit rate
DVD-Photo MPEG-2 2.4Mb/sec. Bit rate
SVCD MPEG-2 2.4Mb/sec. Bit rate
HQ-VCD MPEG-1 2.4Mb/sec. Bit rate
VCD MPEG-1 1.2Mb/sec. Bit rate

Video Formats
CCIR601 NTSC or PAL machines

NTSC
CD-DVD 704 x 480 30 fps
DVD-Photo 704 x 480 30 fps
SVCD 352 x 480 30 fps
HQ-VCD 352 x 240 30 fps
VCD 352 x 240 30 fps

PAL
CD-DVD 704 x 576 25 fps
DVD-Photo 704 x 576 25 fps
SVCD 352 x 576 25 fps
HQ-VCD 352 x 288 25 fps
VCD 352 x 288 25 fps

Digital Audio Input
S/PDIF 44.1 KHz,16 bit CD quality
Audio Inputs & Outputs
Stereo RCA 20 HZ 20 KHz
44.1 KHz audio sampling rate,
16 bit CD Quality

Video Inputs
Y/C (S-Video) mini DIN
Composite (RCA)
DV (IEEE 1394 / i-Link)
4:1:1 NTSC or 4:2:0
PAL 25Mb/sec.
Bit rate

Video Outputs
Y/C (S-Video)
mini DIN
Composite (RCA)
YUV

Microphone Inputs
Two dynamic microphone inputs, 600ohm

General
Power Supply 115-230 VAC, 50/60Hz Selectable

Supplied Accessories
Remote Controller with 2 x AAA Batteries
Datavideo CD-R/W Disc
Y/C Cable
Composite (RCA) Cable
Power Cord
4-Pin to 4-Pin IEEE/1394 DV Cable
User's manual
