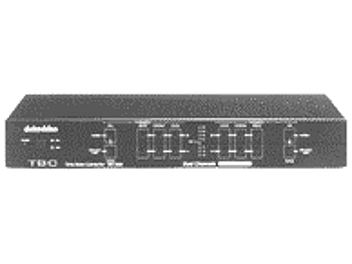

Two channel time base corrector.

Features

Re-generates all the sync signals to stabilize the video.
Built-in four output distribution amplifier for stereo audio, Y/C and Composite video.
Dual Channel Frame synchronization with full frame memory.Dual Channel Color bar pattern generator & color processor.
Freeze frame feature.
Wide bandwidth, 8-bit video resolution.
4:2:2 sampling rate.
You can quickly make multiple copies with professional results.
Compatible with VHS, VHS-C, S-VHS, Hi 8 and Digital 8 format.

Specifications

Inputs
2 (A+B) Y/C (Svideo) 4-pin 75 ohm DIN Connectors
2 (A+B) Composite (RCA) Video 75 ohm RCA Connectors,
Level: 1.0 VP-P
No external audio RCA Connectors

Outputs
2 (A+B) Y/C (Svideo) 4-pin 75 ohm DIN Connectors
2 (A+B) Composite (RCA) Video 75 ohm RCA Connectors,
Level: 1.0 VP-P
2 (A+B) Composite Preview (RCA) Video 75 ohm,
Level: 1.0 VP-P

Controls
Brightness +/-10%
Contrast +/-3dB
Color +/-3dB
Frequency Response 4.5 MHz +/-3dB
DG, DP +/-2%, 1o
S/N Ratio > 50 dB

Processing
Still - Field
Component - 8-bit, 4:2:2; Y: 13.5 MHz
Correction Range - Dual Channel Full Frame TBC
Pattern Generator - Color Bar Pattern

General
Power 9 VDC 10W (AC adapter included)
Ambient Temperature 32o-131 F (0o-55o C)
Ambient Humidity <90%

Dimensions
Width: 420 mm
Depth: 240 mm
Height: 60mm
Weight: 3.2 Kg

Supplied Accessories
Y/C (S-Video) Cable
Composite (RCA) Cable
Rack mount brackets
