6 route single sound input channels
3 band EQ and optional middle frequency
2 stereo ouput, 2 AUX output and 2 return
1 repeat and 1 headphone monitor function
2x7 band EQ of main control balanced
Digital effect device set up inside
Power amplifier output: 2 x 250 W
Dimension: 53 x 52 x 25 cm
Gross weight: 17 kg

Input Channel Sensitivity
MIC: -60db
Stereo ch. Input: -40db
AUX Send: -20db
EFF, Return: -20db

Output
4V MAX

SNR
-80db

Parameter EQ
HI: +/-15db/10KHz
MID: +/-15db/250Hz~6KHz
LOW: +/-15db/60Hz

Power Output
2 x 250W (4 Ohm)
2 x 150W (8 Ohm)

THD
Less than 0.1% (1KHz Full Power)

Power Supply
AC100~120V/200~240V 50/60Hz

Power Consumption
750W

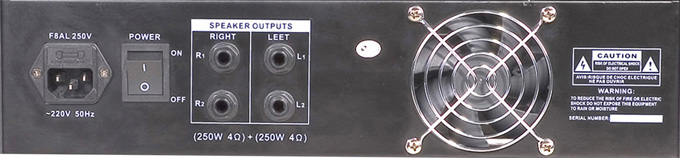

• Mixer photo 2 JPEG - 58 KiB

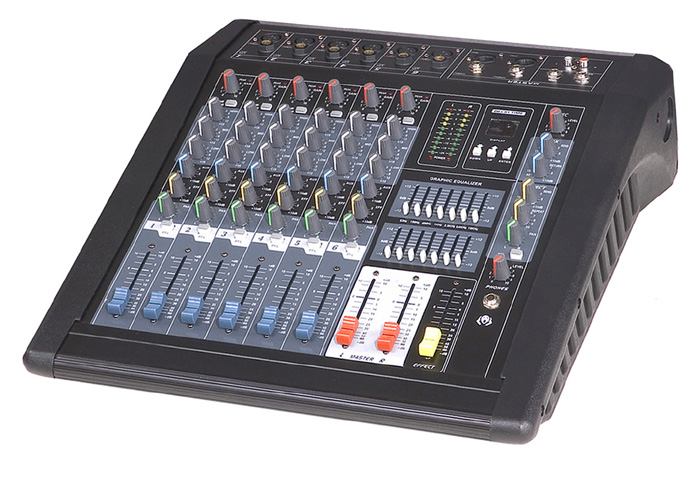

• Mixer photo JPEG - 135 KiB
