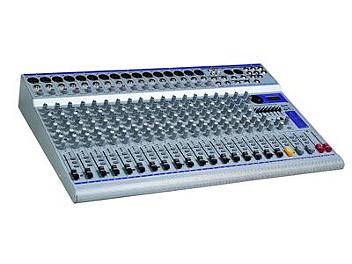

20ch Audio Mixer, DSP Effects
2sub, 48V Phantom Power

Features

MID FREQUENCY PARAMETER function on all mono channels (4-band EQ), Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio.

Integrated 24-bit digital stereo FX processor with 32 DSP presets including reverb, delay, chorus, etc.

Double 7-band stereo graphic EQ, allows precise frequency correction of monitor or main mixes.

2 aux sends per channel: 1 pre fader for monitoring, 1 post fader (for internal FX and/or as external send).

2 multi-functional stereo aux returns.

Voice Canceller function on dedicated CD/tape return channel, for easy-to-use sing-along applications.

4 fully equipped stereo input channels featuring 2 additional mic inputs on channels 5/6 and 7/8, 3-band EQ and input trim control.

Inserts on each mono channel for flexible connection of outboard equipment.

Clip indication and gain level set LEDs plus mute switches for each channel, allow fast and accurate level setting.

Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo tape outputs.

Switchable +48 V phantom power for condenser microphones.

Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls.

Specifications

Mono input channels: Balance MIC or Line input
Mic Sensitivity: -129.5dBu,150 Ohm source; -132dBu, input short circuit.
Line input range: +10dBu~-40dBu
Gain adjust range: -10dB~+60dB
Channel Equalizer: 15dB Boost/Cut@12KHz(HF),0.25-5KHz(MF FREQ),80Hz(LF)
Main output Equalizer: Double 7 band ,12dB Boost/Cut, Constant Q,30mm slide adjuster
Frequency response: 10Hz-30KHz,+/-3dB; 20Hz-20KHz,+/-0.5dB
SNR: >113dB
THD: <0.007%(+4dBu,1KHz)
Max output: +22dBu Balance,+16dBu unbalance
Aux return gain range: +20dB
Monitor max output: +22dBu
Multieffect processor: 24-bit DSP Multi-effect processor, 48KHz sampling frequency
Effector: 30 effect modes, parameter memorable and can be adjusted by computer
Power: AC220V-230V 50/60 Hz
