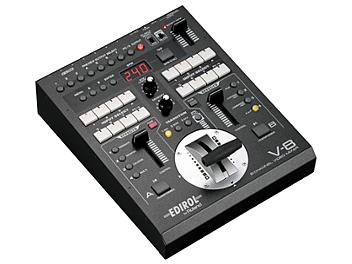

Specifications
Video Format
Video NTSC or PAL (ITU601)
PC-RGB 640x480/120 Hz, 800x600/120 Hz, 832x624/75 Hz, 1024x768/80 Hz,
1152x864/80 Hz, 1152x870/75 Hz, 1280x1024/75 Hz, 1600x1200/60 Hz
(RGB VH: positive/negative logic)
VESA DMT Version 1.0 Revision 10 conform.
The refresh rate is the maximum value of each resolution.
Video Sampling Rate
Video 4:2:2 (Y:B-Y:R-Y), 8 bits, 13.5 MHz
Frame Synchronizer 2 systems
Input Level and Impedance
Video (composite) 1.0 Vp-p, 75 ohms
S-video Luminance signal: 1.0 Vp-p, 75 ohms
Chrominance signal: 0.286 mVp-p, 75 ohms (NTSC) / 0.3 mVp-p, 75 ohms (PAL)
PC-RGB 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)
Output Level and Impedance
Video (composite) 1.0 Vp-p, 75 ohms
S-video Luminance signal: 1.0 Vp-p, 75 ohms
Chrominance signal: 0.286 mVp-p, 75 ohms (NTSC) / 0.3 mVp-p, 75 ohms (PAL)
Connectors Input
Video (composite): BNC type x 7 jacks (Ch 1-7)
S-video: 4-pin mini DIN type x 4 jacks (Ch 5-8)
PC-RGB: D-SUB 15pin Shrink Type x 2 jacks (Ch 8: PC1 / PC2)
Inputs 5-8; however if S-video is simultaneously input to 5-8, S-video takes priority
Output Video (composite): BNC type x 2 jacks
S-video: 4-pin mini DIN type x 1 jacks
Preview Output Video (composite): BNC type x 1 jack (OSD Menu)
Monitor Output Video (composite): BNC type x 8 jacks (Ch 1-8)
Remote Control Interfaces
MIDI IN 5-pin DIN type x 1 jack
MIDI OUT/THRU 5-pin DIN type x 1 jack
Transition effects
Mix: Dissolve, Nam, Fam
Wipe: Hard edge wipe, Soft edge wipe
Video effects
Still, Strobe, Afterimage, Feedback, Shake, Negative, Colorize, Findedge, Silhouette, Monocolor, Emboss, Posterize, Colorpass, Luminance key, Chroma key, Flip, Multi, Mirror, Picture-in-picture, Key, Slide, Stretch, User Transition (more than 200 types)
Power Supply DC 9 V (AC Adaptor: PSB-1U)
Current Draw 2A (AC Adaptor: PSB-1U)
Dimensions
238 (W) x 315 (D) x 134 (H) mm
9-3/8 (W) x 12-7/16 (D) x 5-5/16 (H) inches
Weight
3.2 kg
7 lbs 1 oz
