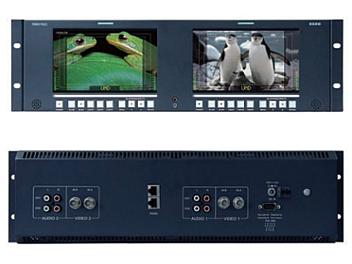

Osee RMS-7023-HSC 2 x 7-inch LCD Monitor
DISCONTINUED
The Osee RMS-7023-HSC supports HD/SD-SDI, Analog Composite signals.
The RMS7023 is a 3U high rack mountable LCD monitor that offers video
and audio monitoring with high resolution of 800x480. The unit is equipped with full
digital processing technology, and its screens feature anti-glare. The model accepts
HD-SDI, SD-SDI and analog composite signal. A high display quality of all video
signals can be ensured by full digital processing. The precise scaling chip as well
as Gamma correction is a guarantee for high quality display image.
The RMS7023 is a 3U high rack mountable LCD monitor that offers video
and audio monitoring with high resolution of 800x480. The unit is equipped with full
digital processing technology, and its screens feature anti-glare. The model accepts
HD-SDI, SD-SDI and analog composite signal. A high display quality of all video
signals can be ensured by full digital processing. The precise scaling chip as well
as Gamma correction is a guarantee for high quality display image.
Specifications
Number of Screens: 2
Display (Viewing Area): 7" diagonal (6.22"H x 3.58"V) (158mm x 91mm)
Viewing Angles: 130oH x115o V
Screen Colors (Bit Depth): 16.7M (24 Bit)
Resolution (Dots): 800H x 480V
Dot Pitch: 0.1905mm (H) x 0.1905mm (V)
Contrast Ratio: 300 :1
Pixel Response: <30ms typical
Dimensions: 19.1"W x 5.25"H x 2.6"D (486mm x 133mm x 67mm)
Power Consumption: 12VDC/10 watts. (3.8 Amps max CE & UL complied supply included)
Operating Temperature: 0o C to 60o C
System: NTSC/PAL auto recognition
Inputs: HD-SDI / Analog Composite (BNC)
Active Outputs: HD-SDI re-clocked output (BNC)
Display (Viewing Area): 7" diagonal (6.22"H x 3.58"V) (158mm x 91mm)
Viewing Angles: 130oH x115o V
Screen Colors (Bit Depth): 16.7M (24 Bit)
Resolution (Dots): 800H x 480V
Dot Pitch: 0.1905mm (H) x 0.1905mm (V)
Contrast Ratio: 300 :1
Pixel Response: <30ms typical
Dimensions: 19.1"W x 5.25"H x 2.6"D (486mm x 133mm x 67mm)
Power Consumption: 12VDC/10 watts. (3.8 Amps max CE & UL complied supply included)
Operating Temperature: 0o C to 60o C
System: NTSC/PAL auto recognition
Inputs: HD-SDI / Analog Composite (BNC)
Active Outputs: HD-SDI re-clocked output (BNC)
