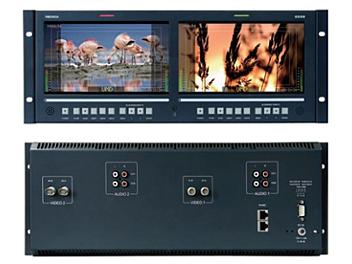

Osee RMS-9024-HSC 2 x 9-inch LCD Monitor
DISCONTINUED
The Osee RMS-9024-HSC supports HD/SD-SDI, Analog Composite signals.
The RMS9024 is a 4U high rack mountable LCD monitor that offers video
and audio monitoring with high resolution of 800x480. The unit is equipped with full
digital processing technology, and its screens feature anti-glare. The model accepts
HD-SDI, SD-SDI and analog composite signal. A high display quality of all video
signals can be ensured by full digital processing. The precise scaling chip as well
as Gamma correction is a guarantee for high quality display image.
The RMS9024 is a 4U high rack mountable LCD monitor that offers video
and audio monitoring with high resolution of 800x480. The unit is equipped with full
digital processing technology, and its screens feature anti-glare. The model accepts
HD-SDI, SD-SDI and analog composite signal. A high display quality of all video
signals can be ensured by full digital processing. The precise scaling chip as well
as Gamma correction is a guarantee for high quality display image.
Specifications
Number of Screens: 2
Display (Viewing Area): 9" diagonal (7.795"H x 4.413"V) (198mm x 112.08mm)
Viewing Angles: 140oH x120o V
Screen Colors (Bit Depth): 16.2M
Resolution (Dots): 800H x 480V
Dot Pitch: 0.2475 x 0.2335mm
Contrast Ratio: 400 :1
Pixel Response: <25ms typical
Dimensions: 19.1"W x 7"H x 2.7"D (486mm x 178mm x 69mm)
Power Consumption: 12VDC/10 watts. (3.8 Amps max CE & UL complied supply included)
Operating Temperature: 0o C to 60o C
System: NTSC/PAL auto recognition
Inputs: HD-SDI /Analog Composite (BNC)
Active Outputs: HD-SDI re-clocked output (BNC)
