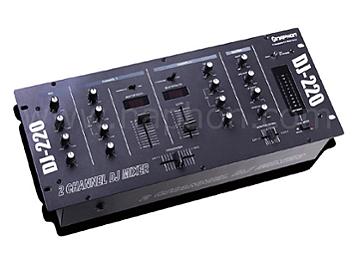

Naphon DJ220 Audio Mixer
DISCONTINUED
Professional 2 channel ultra low noise DJ Mixer with additional Mic. input and earphone monitor
Intelligent auto-BPM counter
Super-smooth ULTRAGLIDE fader with up to 500000 life cycles
VCA fader engines for utmost reliability and smooth audio performance
Dedicated curve control for all faders.
Professional cross fader reverse switch
Awesome adjustable XPQ stereo surround effect
2 band kill EQ(-20db),gain and balance control per channel
PFL function with CH-1/CH-2 balance control
Precise master/cue level meter with peak hold function
Intelligent auto-BPM counter
Super-smooth ULTRAGLIDE fader with up to 500000 life cycles
VCA fader engines for utmost reliability and smooth audio performance
Dedicated curve control for all faders.
Professional cross fader reverse switch
Awesome adjustable XPQ stereo surround effect
2 band kill EQ(-20db),gain and balance control per channel
PFL function with CH-1/CH-2 balance control
Precise master/cue level meter with peak hold function
Specifications
Audio Input
MIC:40db gain, electronically balance input stage
Phono1 and 2:40db gain, unbalance input
Line1 and 2: 0db gain, unbalance input
Return:0db gain, unbalance input
Audio Output
Master:max.+19db
Tape:0db
Send:0db
Phones:Max.180Mw/75Ohm/1% THD
Equalizer
Stereo Low:+10db/-20db/50Hz
Stereo High: +10db/-20db/10KHz
Mic low: +10db/-20db/50Hz
Mic High: +10db/-10db/10KHz
General
S/N Ratio: more than 87db(line)
Crosstalk: more than 60db(line)
Distortion(THD):less than 0.7%
Frequency Response:10HZ-30KHz +1/-3db
Power Supply
Power Supply:110V-240V
Power consumption:15W
Dimensions:483 x 200 x 115mm
G.W.:6.00kgs
